SPECIFICATION
See also common specification
Number of channelsOne
Zone 0, IIB, T4–6 hazardous area if suitably certified

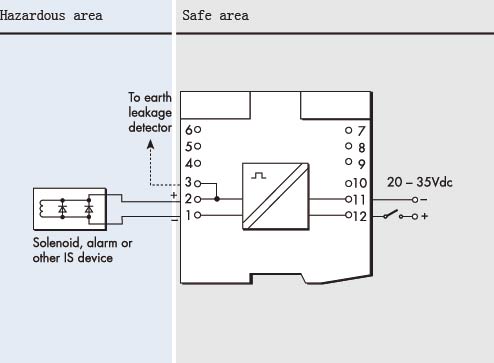

Equivalent circuit
LED indicator
Yellow: status
Input voltage
20 to 35V dc
Hazardous-area output
Minimum output voltage: 12.9V at 60mA
Maximum output voltage: 24V from 133
Current limit:60mA
Maximum current consumption (with 60mA output)
115mA at 24V, typical
135mA at 20 to 35V dc, maximum
Maximum power dissipation within unit
1.5W at 24V
2.1W at 35V
Safety description
25V, 135Ω85mA,1Um = 250V rms or dc
SPECIFICATION
See also common specification
Number of channelsOne
Zone 0, IIB, T4–6 hazardous area if suitably certified
Equivalent circuit
LED indicator
Yellow: status
Input voltage
20 to 35V dc
Hazardous-area output
Minimum output voltage: 12.9V at 60mA
Maximum output voltage: 24V from 133
Current limit:60mA
Maximum current consumption (with 60mA output)
115mA at 24V, typical
135mA at 20 to 35V dc, maximum
Maximum power dissipation within unit
1.5W at 24V
2.1W at 35V
Safety description
25V, 135Ω85mA,1Um = 250V rms or dc
