MTL5522安全栅DO开关量

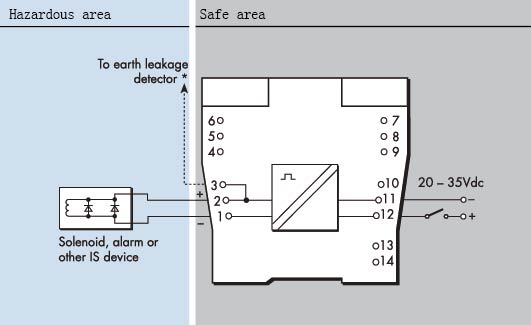

- ocated in the hazardous area to be controlled from the safe area. The as non-energy-storing simple apparatus such as an LED. The unit's either side of the 24V dc supply circuit. SPECIFICATION See also common specification Number of ch
as non-energy-storing simple apparatus such as an LED. The unit's
either side of the 24V dc supply circuit.
SPECIFICATION
See also common specification
Number of channels One Location of load
Zone 0, IIB, T4–6 hazardous area if suitably certified
Div. 1, Group C hazardous location
Minimum output voltage Equivalent output circuit
Minimum output voltage: 9.9V at 70mA
Maximum output voltage: 24V from 158Ω
Current limit: 70mA\
Output ripple
< 0.5% of maximum output, peak to peak
Response time
Output within 10% of final value within 100ms
Signal plug HAZ1-3 is required for access to this function
LED indicator
Yellow: output status, on when output active
Maximum current consumption
125mA (typ.) at 24V
Power dissipation within unit
1.4W at 24V
Safety description
U o =25V =166mA P =1.04W U = 253V rms or dc SIL capable
These models have been assessed for use in IEC 61508 functional
safety applications. See data on MTL web site.
Minimum output voltage: 9.9V at 70mA
Maximum output voltage: 24V from 158Ω
Current limit: 70mA\
Output ripple
< 0.5% of maximum output, peak to peak
Response time
Output within 10% of final value within 100ms
Signal plug HAZ1-3 is required for access to this function
LED indicator
Yellow: output status, on when output active
Maximum current consumption
125mA (typ.) at 24V
Power dissipation within unit
1.4W at 24V
Safety description
U o =25V =166mA P =1.04W U = 253V rms or dc SIL capable
These models have been assessed for use in IEC 61508 functional
safety applications. See data on MTL web site.
